LC APC Ribbon Fiber Fan Out Pigtails 12 Core 900um Single Mode G657A2 1.5m

Product Categories
Shenzhen Unifiber Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

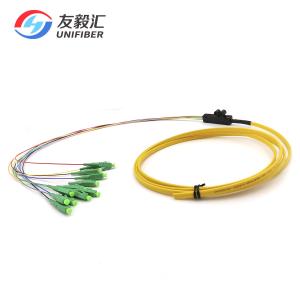

LC APC Ribbon Fiber Fan Out Pigtails 12 Core 900um Single Mode G657A2 1.5m

  • 1
  • 2

Brand Name : Unifiber or OEM

Model Number : LC/APC Ribbon Fiber Fan-out Pigtails 12 core

Certification : ROHS

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pcs/day

Delivery Time : 3~5 days

Packaging Details : Blister case

Product : LC/APC Ribbon Fiber Fan-out Pigtails 12 core

Connector : LC/APC

Fiber Counts : 12 core

Fiber Type : Single mode G657A2

Pigtail Length : 1.5m

Application : Fiber Patching

Contact Now

12F Ribbon Fan-out Fiber Optic Pigtail is a multi-fibers pigtail which made by Ribbon cable. The ribbon fiber fanout via a 1x12 fanout kit. The fanout cable can be 900um or 2.0mm cable. This 4-12F Ribbon Fan-out Fiber Optic Pigtail are available in both single and multimode versions with either APC or UPC polish types.

Features:
– Low insertion loss and high return loss;
– Good repeatability & interchangeability;
– PC, UPC, APC polishing; FC, SC, ST, LC, MU connector;
– Suitable for high-speed, high-capacity optical fiber transmission system;
– Provide single mode/ multimode patch cord and pigtails;
– Fiber diameter: Φ0.9mm, Φ2.0mm, Φ3.0mm;
– Length/Type: according to customers’ demands.

Products info

Fiber count 12 Fiber Mode 9/125μm
Connector Type1 LC/APC Connector Type2 Unterminated
Fiber Mode SM G657A2 Breakout length 0.5m
Wavelength 1310/1550nm Jacket Material PVC/LSZH
Insertion loss ≤0.3dB Interchangeability ≤0.2dB
Return loss ≥50dB Vibration ≤0.2dB
Operating temperature -40~75°C Storage temperature -45~85°C

LC APC Ribbon Fiber Fan Out Pigtails 12 Core 900um Single Mode G657A2 1.5mLC APC Ribbon Fiber Fan Out Pigtails 12 Core 900um Single Mode G657A2 1.5m


Product Tags:

LC APC Fan Out Pigtails



900um Fan Out Pigtails



G657A2 Single Mode Fiber Pigtail


Wholesale LC APC Ribbon Fiber Fan Out Pigtails 12 Core 900um Single Mode G657A2 1.5m from china suppliers
